Aws ami를 사용한 en운영

한국어🇰🇷 Kaia
1

기존에 운영하던 노드를 aws로 옴기기위해서 ami를 사용한 en운영문서를 따라서 실행했습니다.
설치과정에서 큰 문제없이 진행되었고 포트 설정까지 완료했습니다.
klay.syning도 false로 나오고 외부에서 노드 조회가 되서 정상인줄 알았는데
실제 운영에서 싱크 및 이후 블록데이터 생성이 안되고 멈춰있는것 같습니다.
state-migrated로 설치했고 11월 19일자를 사용했습니다.

아래는 service restart 로그입니다.

INFO[11/23,15:18:03 +09] [4] Logging configured rotate=false format=terminal location=/var/kend/logs/kend.out
INFO[11/23,15:18:03 +09] [31] Enabling metrics collection
INFO[11/23,15:18:03 +09] [31] Enabling Prometheus Exporter
INFO[11/23,15:18:03 +09] [18] Setting connection type nodetype=en conntype=1
INFO[11/23,15:18:03 +09] [18] Setting MaxPhysicalConnections MaxPhysicalConnections=10
INFO[11/23,15:18:03 +09] [18] A private network ID is set networkid=8217
WARN[11/23,15:18:03 +09] [18] The fasthttp option is deprecated. Instead, the server will start with the http type
INFO[11/23,15:18:03 +09] [18] Raised fd limit to process’s maximum value fd=4096
INFO[11/23,15:18:03 +09] [18] A private network ID is set networkid=8217
INFO[11/23,15:18:03 +09] [18] Archiving mode of this node isArchiveMode=false
INFO[11/23,15:18:03 +09] [40] Ntp time check local=2024-11-23T06:18:03.165103198Z remote=2024-11-23T06:18:03.164034792Z
INFO[11/23,15:18:03 +09] [40] Starting peer-to-peer node instance=Klaytn/v1.0.3/linux-amd64/go1.22.1
INFO[11/23,15:18:03 +09] [48] Non-single database is used for persistent storage DBType=LevelDB
INFO[11/23,15:18:03 +09] [48] LevelDB configurations path=/var/kend/data/klay/chaindata/misc levelDBCacheSize=16 openFilesLimit=40 useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/23,15:18:38 +09] [48] LevelDB configurations path=/var/kend/data/klay/chaindata/header levelDBCacheSize=38 openFilesLimit=102 useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/23,15:20:43 +09] [48] LevelDB configurations path=/var/kend/data/klay/chaindata/body levelDBCacheSize=38 openFilesLimit=102 useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/23,15:21:19 +09] [48] LevelDB configurations path=/var/kend/data/klay/chaindata/receipts levelDBCacheSize=38 openFilesLimit=102 useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/23,15:22:12 +09] [48] LevelDB configurations path=/var/kend/data/klay/chaindata/statetrie/0 levelDBCacheSize=76 openFilesLimit=204 useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/23,15:22:50 +09] [48] LevelDB configurations path=/var/kend/data/klay/chaindata/statetrie/1 levelDBCacheSize=76 openFilesLimit=204 useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/23,15:23:31 +09] [48] LevelDB configurations path=/var/kend/data/klay/chaindata/statetrie/2 levelDBCacheSize=76 openFilesLimit=204 useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/23,15:24:10 +09] [48] LevelDB configurations path=/var/kend/data/klay/chaindata/statetrie/3 levelDBCacheSize=76 openFilesLimit=204 useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/23,15:26:04 +09] [48] Created a sharded database dbType=statetrie numShards=4
INFO[11/23,15:26:04 +09] [48] LevelDB configurations path=/var/kend/data/klay/chaindata/txlookup levelDBCacheSize=16 openFilesLimit=40 useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/23,15:27:05 +09] [48] LevelDB configurations path=/var/kend/data/klay/chaindata/bridgeservice levelDBCacheSize=16 openFilesLimit=20 useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/23,15:27:06 +09] [48] LevelDB configurations path=/var/kend/data/klay/chaindata/snapshot levelDBCacheSize=22 openFilesLimit=61 useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/23,15:27:07 +09] [5] InitDeriveSha initial=2 withGov=false
INFO[11/23,15:27:07 +09] [49] Persisted trie from memory database blockNum=0 updated nodes=9 updated nodes size=1.13kB time=174.953µs gcnodes=0 gcsize=0.00B gctime=0s livenodes=1 livesize=0.00B preimages=7 pruningMarks=0
INFO[11/23,15:27:07 +09] [5] Restored state trie for the genesis block
INFO[11/23,15:27:07 +09] [30] Successfully loaded governance state from database blockNumber=169878528
INFO[11/23,15:27:07 +09] [41] Initialised chain configuration config=“{ChainID: 8217 IstanbulCompatibleBlock: 86816005 LondonCompatibleBlock: 86816005 EthTxTypeCompatibleBlock: 86816005 MagmaCompatibleBlock: 99841497 KoreCompatibleBlock: 119750400 ShanghaiCompatibleBlock: 135456000 CancunCompatibleBlock: 147534000 KaiaCompatibleBlock: 162900480 RandaoCompatibleBlock: 147534000 KIP103CompatibleBlock: 119750400 KIP103ContractAddress 0xD5ad6D61Dd87EdabE2332607C328f5cc96aeCB95 KIP160CompatibleBlock: 162900480 KIP160ContractAddress 0xa4df15717Da40077C0aD528296AdBBd046579Ee9 SubGroupSize: 22 UnitPrice: 25000000000 DeriveShaImpl: 2 Engine: istanbul}”
INFO[11/23,15:27:07 +09] [41] Initialising Klaytn protocol versions=“[65 64]” network=8217
INFO[11/23,15:27:07 +09] [5] Loaded most recent local header number=169878971 hash=e36e3d…646bca td=169878972 age=5d5h26m
INFO[11/23,15:27:07 +09] [5] Loaded most recent local full block number=169878971 hash=e36e3d…646bca td=169878972 age=5d5h26m
INFO[11/23,15:27:07 +09] [5] Loaded most recent local fast block number=169878971 hash=e36e3d…646bca td=169878972 age=5d5h26m
INFO[11/23,15:27:07 +09] [5] prefetchTxWorkers are started num=32
INFO[11/23,15:27:07 +09] [41] Live pruning is enabled retention=172800
INFO[11/23,15:27:07 +09] [5] InitDeriveSha initial=0 withGov=true
INFO[11/23,15:27:07 +09] [5] Loaded local transaction journal transactions=15 dropped=0
INFO[11/23,15:27:07 +09] [5] Regenerated local transaction journal transactions=15 accounts=1
INFO[11/23,15:27:07 +09] [41] Start creating istanbul snapshot
INFO[11/23,15:27:54 +09] [41] Finished creating istanbul snapshot
INFO[11/23,15:27:54 +09] [40] Starting P2P networking
INFO[11/23,15:27:58 +09] [34] UDP listener up self=“kni://d2e7af82f421686794fc85cfbaa33b6686b92cf0f239ddb191736dcd320de36f96af591f840971d54016b03fb26a80116fab038d1de5f7e4bc817c511d4c48ee@[::]:32323?ntype=en”
INFO[11/23,15:27:58 +09] [40] Started P2P server id=d2e7af82f4216867 multichannel=true
INFO[11/23,15:27:58 +09] [40] RLPx listener up self=“kni://d2e7af82f421686794fc85cfbaa33b6686b92cf0f239ddb191736dcd320de36f96af591f840971d54016b03fb26a80116fab038d1de5f7e4bc817c511d4c48ee@[::]:32323?ntype=en”
INFO[11/23,15:27:58 +09] [40] RLPx listener up self=“kni://d2e7af82f421686794fc85cfbaa33b6686b92cf0f239ddb191736dcd320de36f96af591f840971d54016b03fb26a80116fab038d1de5f7e4bc817c511d4c48ee@[::]:32323?ntype=en”
INFO[11/23,15:27:58 +09] [44] Total supply big step catchup last=169878912 head=169878971 minted=11450849078400000000000000000 burntFee=4493595430699225910107118
INFO[11/23,15:27:58 +09] [40] IPC endpoint opened url=/var/kend/data/klay.ipc
INFO[11/23,15:27:58 +09] [40] HTTP endpoint opened url=http://0.0.0.0:8551 cors=* vhosts=*
INFO[11/23,15:27:58 +09] [40] WebSocket endpoint opened url=ws://[::]:8552
INFO[11/23,15:27:58 +09] [44] Total supply big step catchup done last=169878971 minted=11450849644800000000000000000 burntFee=4493600149375747412407118

2

안녕하세요.

로그에는 특이한 점은 보이지 않는데, 싱크가 되지 않는다는 말씀은 블록넘버가 오르지 않는다는 말씀이실까요?

AMI를 이용해서 EN을 설정한 경우에는 문서에 설명된 것과 같이 EBS volume warmup을 하지 않으면 처음에는 블록 싱크 등 노드의 동작이 매우 더딜 수 있습니다.

EBS volume warmup은 1~2일 정도 소요될 수 있는 점 참고해 주세요.

1개의 좋아요
3

fio 명령어는 네트워크가 끈겨서 마무리는 안되었지만 90%이상 완료된상태였습니다.
지금 3일정도 지났는데 블록넘버가 ami초기 상태에서 늘어나지 않고 있어서요…
혹시나 몰라서 다시 블록 웜업 다시 진행하고 있습니다만 다른이슈가 있는것은 아닐까 문의드렸습니다.
다른 의심 사유가 없다면 웜업완료되고 이후 상황을 다시 공유드릴께요.

1개의 좋아요
4

완료후에 재시작했음에도 동일하게
INFO[11/23,21:34:07 +09] [44] Total supply big step catchup done last=169878971 minted=11450849644800000000000000000 burntFee=4493600149375747412407118

로그 이후 별다른 추가 로그가 생기지 않네요.

1개의 좋아요
5

안녕하세요, 혹시 peer 연결이 잘 되었는지 확인해주실 수 있으실까요? net.peerCount로 확인해보실 수 있습니다.

1개의 좋아요
6

피어연결 0건입니다.

net.peerCount

0

1개의 좋아요
7

서버 c7i.4xlarge로 16 vCpu, 32 GB메모리인데 메모리 이슈일수있을까요?

8

메모리보단 방화벽이나 다른 네트워크 문제일 것 같은데요… 방화벽 설정/포트 열려있는지 다시 확인해보시고 혹시 다 정상이라면 kend.conf에서 verbosity flag를 5로 설정한 후 재시작하여 더 많은 로그를 확인해볼 수 있을 것 같습니다.

1개의 좋아요
9

image1455×222 18.4 KB

방화벽 세팅은 이미지와 같구요 그외에는 22, 8551포트 설정정도 예요.

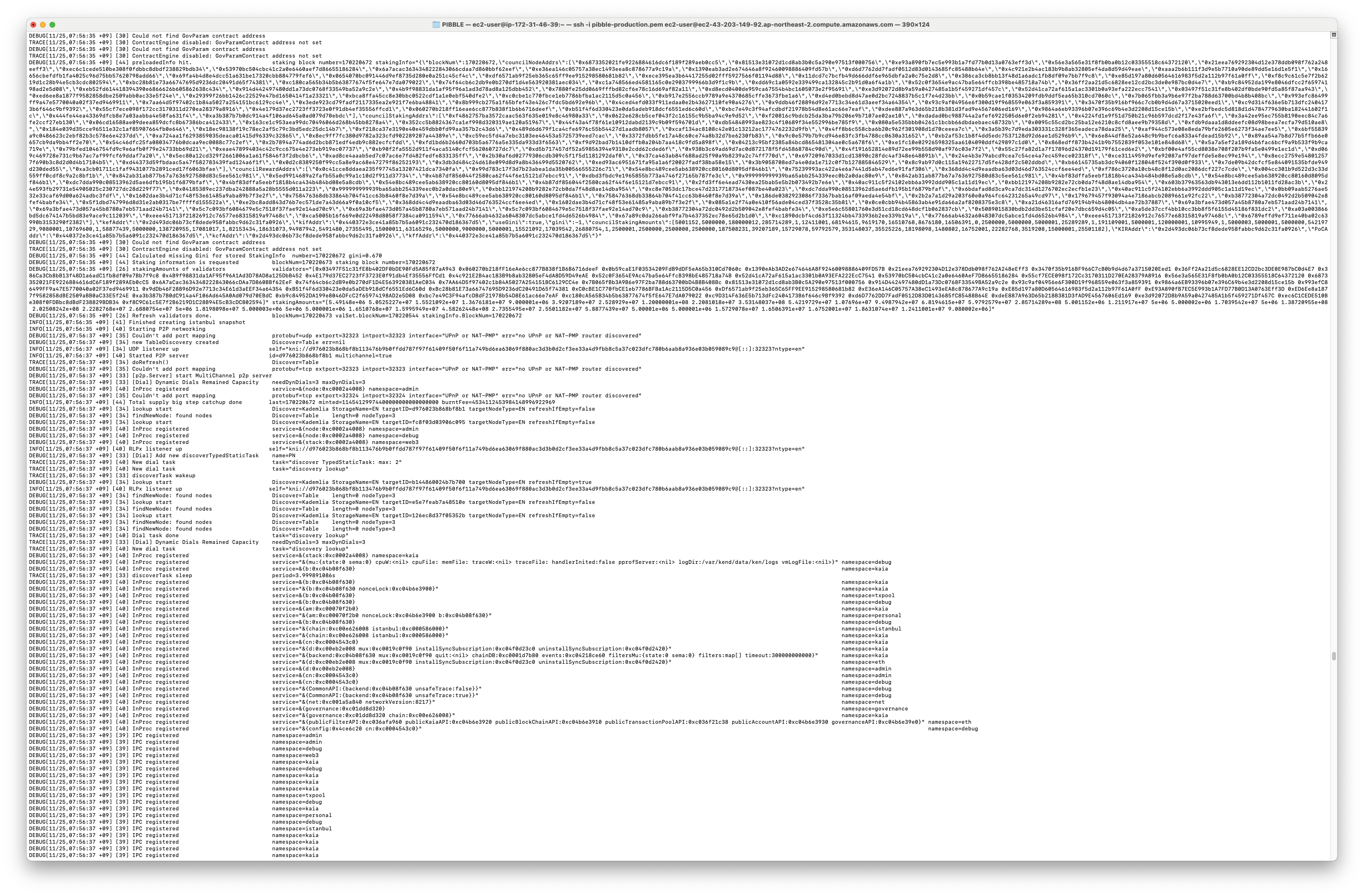

image2867×1883 924 KB

image2823×1839 1.23 MB

image2867×1883 1.13 MB

image2867×1883 964 KB

입력제한으로 이미지 캡춰 보내드려요.

마지막부분은
TRACE[11/25,08:10:53 +09] [33] discoverTask sleep period=3.999610311s
TRACE[11/25,08:10:57 +09] [33] discoverTask wakeup
DEBUG[11/25,08:10:57 +09] [34] lookup start Discover=Kademlia StorageName=EN targetID=77ab57b1e6e70925 targetNodeType=EN refreshIfEmpty=true
TRACE[11/25,08:10:57 +09] [34] doRefresh() Discover=Table
DEBUG[11/25,08:10:57 +09] [34] lookup Discover=Simple StorageName=PN targetId=0000000000000000 targetType=PN
DEBUG[11/25,08:10:57 +09] [34] findNewNode: found nodes Discover=Table length=0 nodeType=2
TRACE[11/25,08:10:57 +09] [33] discoverTypedStaticTask result=0
DEBUG[11/25,08:10:57 +09] [34] lookup start Discover=Kademlia StorageName=EN targetID=d976023b868bf8b1 targetNodeType=EN refreshIfEmpty=false
TRACE[11/25,08:10:57 +09] [40] Dial task done task=“discover TypedStaticTask: max: 2”
TRACE[11/25,08:10:57 +09] [33] [Dial] discoverTypedStaticTask - done t.name=PN result count=0
TRACE[11/25,08:10:57 +09] [33] [Dial] Dynamic Dials Remained Capacity needDynDials=3 maxDynDials=3
DEBUG[11/25,08:10:57 +09] [33] [Dial] Add new discoverTypedStaticTask name=PN
TRACE[11/25,08:10:57 +09] [40] New dial task task=“discover TypedStaticTask: max: 2”
DEBUG[11/25,08:10:57 +09] [34] findNewNode: found nodes Discover=Table length=0 nodeType=3
DEBUG[11/25,08:10:57 +09] [34] lookup start Discover=Kademlia StorageName=EN targetID=b90bc88b9b4415e4 targetNodeType=EN refreshIfEmpty=false
DEBUG[11/25,08:10:57 +09] [34] findNewNode: found nodes Discover=Table length=0 nodeType=3
DEBUG[11/25,08:10:57 +09] [34] lookup start Discover=Kademlia StorageName=EN targetID=9441a3328450fcb2 targetNodeType=EN refreshIfEmpty=false
DEBUG[11/25,08:10:57 +09] [34] findNewNode: found nodes Discover=Table length=0 nodeType=3
DEBUG[11/25,08:10:57 +09] [34] lookup start Discover=Kademlia StorageName=EN targetID=e65c8bf84ea0bcd2 targetNodeType=EN refreshIfEmpty=false
DEBUG[11/25,08:10:57 +09] [34] findNewNode: found nodes Discover=Table length=0 nodeType=3
DEBUG[11/25,08:10:57 +09] [34] findNewNode: found nodes Discover=Table length=0 nodeType=3
TRACE[11/25,08:10:57 +09] [40] Dial task done task=“discovery lookup”
TRACE[11/25,08:10:57 +09] [33] [Dial] Dynamic Dials Remained Capacity needDynDials=3 maxDynDials=3
TRACE[11/25,08:10:57 +09] [40] New dial task task=“discovery lookup”
TRACE[11/25,08:10:57 +09] [33] discoverTask sleep period=3.999400469s

이런 부분이 계속 반복됩니다.

확인부탁드립니다.
감사합니다.

1개의 좋아요
10

peer를 못찾는 것 같은데요… 일단 static하게 addPeer 시도해보시겠어요? kni는 kaia/params/bootnodes.go at dev · kaiachain/kaia · GitHub 여기있습니다.

admin.addPeer(kni)
1개의 좋아요
11

admin.addPeer(“kni://18b36118cce093673499fc6e9aa196f047fe17a0de35b6f2a76a4557802f6abf9f89aa5e7330e93c9014b714b9df6378393611efe39aec9d3d831d6aa9d617ae@ston65.node.kaia.io:32323?ntype=bn”)

true

admin.addPeer(“kni://63f1c96874da85140ecca3ce24875cb5ef28fa228bc3572e16f690db4a48fc8067502d2f6e8f0c66fb558276a5ada1e4906852c7ae42b0003e9f9f25d1e123b1@ston873.node.kaia.io:32323?ntype=bn”)

true

admin.addPeer(“kni://94cc15e2014b86584908707de55800c0a2ea8a24dc5550dcb507043e4cf18ff04f21dc86ed17757dc63b1fa85bb418b901e5e24e4197ad4bbb0d96cd9389ed98@ston106.node.kaia.io:32323?ntype=bn”)

true

로 ken attach이후 실행했습니다.

DEBUG[11/25,09:24:17 +09] [33] [Dial] Failed dialing                     task="staticdial 18b36118cce09367 52.78.22.32:32323"    err="dial tcp 52.78.22.32:32323: i/o timeout"
TRACE[11/25,09:24:17 +09] [40] Dial task done                            task="staticdial 18b36118cce09367 52.78.22.32:32323"
TRACE[11/25,09:24:17 +09] [33] [Dial] Dynamic Dials Remained Capacity    needDynDials=3 maxDynDials=3
TRACE[11/25,09:24:17 +09] [33] [Dial] Skipped addStaticDial              reason="recently dialed" to="kni://63f1c96874da85140ecca3ce24875cb5ef28fa228bc3572e16f690db4a48fc8067502d2f6e8f0c66fb558276a5ada1e4906852c7ae42b0003e9f9f25d1e123b1@52.194.200.217:32323?ntype=bn"
TRACE[11/25,09:24:17 +09] [33] [Dial] Skipped addStaticDial              reason="recently dialed" to="kni://94cc15e2014b86584908707de55800c0a2ea8a24dc5550dcb507043e4cf18ff04f21dc86ed17757dc63b1fa85bb418b901e5e24e4197ad4bbb0d96cd9389ed98@18.136.251.28:32323?ntype=bn"
TRACE[11/25,09:24:17 +09] [33] [Dial] Skipped addStaticDial              reason="recently dialed" to="kni://18b36118cce093673499fc6e9aa196f047fe17a0de35b6f2a76a4557802f6abf9f89aa5e7330e93c9014b714b9df6378393611efe39aec9d3d831d6aa9d617ae@52.78.22.32:32323?ntype=bn"
TRACE[11/25,09:24:18 +09] [33] discoverTask wakeup
DEBUG[11/25,09:24:18 +09] [34] lookup                                    Discover=Simple   StorageName=PN targetId=0000000000000000 targetType=PN
DEBUG[11/25,09:24:18 +09] [34] findNewNode: found nodes                  Discover=Table    length=0 nodeType=2
TRACE[11/25,09:24:18 +09] [33] discoverTypedStaticTask                   result=0
TRACE[11/25,09:24:18 +09] [40] Dial task done                            task="discover TypedStaticTask: max: 2"
TRACE[11/25,09:24:18 +09] [33] [Dial] discoverTypedStaticTask - done     t.name=PN result count=0
TRACE[11/25,09:24:18 +09] [33] [Dial] Dynamic Dials Remained Capacity    needDynDials=3 maxDynDials=3
TRACE[11/25,09:24:18 +09] [33] [Dial] Skipped addStaticDial              reason="recently dialed" to="kni://18b36118cce093673499fc6e9aa196f047fe17a0de35b6f2a76a4557802f6abf9f89aa5e7330e93c9014b714b9df6378393611efe39aec9d3d831d6aa9d617ae@52.78.22.32:32323?ntype=bn"
TRACE[11/25,09:24:18 +09] [33] [Dial] Skipped addStaticDial              reason="recently dialed" to="kni://63f1c96874da85140ecca3ce24875cb5ef28fa228bc3572e16f690db4a48fc8067502d2f6e8f0c66fb558276a5ada1e4906852c7ae42b0003e9f9f25d1e123b1@52.194.200.217:32323?ntype=bn"
TRACE[11/25,09:24:18 +09] [33] [Dial] Skipped addStaticDial              reason="recently dialed" to="kni://94cc15e2014b86584908707de55800c0a2ea8a24dc5550dcb507043e4cf18ff04f21dc86ed17757dc63b1fa85bb418b901e5e24e4197ad4bbb0d96cd9389ed98@18.136.251.28:32323?ntype=bn"
DEBUG[11/25,09:24:18 +09] [33] [Dial] Add new discoverTypedStaticTask    name=PN
TRACE[11/25,09:24:18 +09] [40] New dial task                             task="discover TypedStaticTask: max: 2"
DEBUG[11/25,09:24:18 +09] [34] lookup start                              Discover=Kademlia StorageName=EN targetID=8a56b864e2dfd763 targetNodeType=EN refreshIfEmpty=true
TRACE[11/25,09:24:18 +09] [34] doRefresh()                               Discover=Table
DEBUG[11/25,09:24:18 +09] [34] lookup start                              Discover=Kademlia StorageName=EN targetID=d976023b868bf8b1 targetNodeType=EN refreshIfEmpty=false
DEBUG[11/25,09:24:18 +09] [34] findNewNode: found nodes                  Discover=Table    length=0 nodeType=3
DEBUG[11/25,09:24:18 +09] [34] lookup start                              Discover=Kademlia StorageName=EN targetID=8d4119e25a5daed5 targetNodeType=EN refreshIfEmpty=false
DEBUG[11/25,09:24:18 +09] [34] findNewNode: found nodes                  Discover=Table    length=0 nodeType=3
DEBUG[11/25,09:24:18 +09] [34] lookup start                              Discover=Kademlia StorageName=EN targetID=a8f7c6501c0de5dd targetNodeType=EN refreshIfEmpty=false
DEBUG[11/25,09:24:18 +09] [34] findNewNode: found nodes                  Discover=Table    length=0 nodeType=3
DEBUG[11/25,09:24:18 +09] [34] lookup start                              Discover=Kademlia StorageName=EN targetID=8c9e417303d71004 targetNodeType=EN refreshIfEmpty=false
DEBUG[11/25,09:24:18 +09] [34] findNewNode: found nodes                  Discover=Table    length=0 nodeType=3
DEBUG[11/25,09:24:18 +09] [34] findNewNode: found nodes                  Discover=Table    length=0 nodeType=3
TRACE[11/25,09:24:18 +09] [40] Dial task done                            task="discovery lookup"
TRACE[11/25,09:24:18 +09] [33] [Dial] Dynamic Dials Remained Capacity    needDynDials=3 maxDynDials=3
TRACE[11/25,09:24:18 +09] [33] [Dial] Skipped addStaticDial              reason="recently dialed" to="kni://18b36118cce093673499fc6e9aa196f047fe17a0de35b6f2a76a4557802f6abf9f89aa5e7330e93c9014b714b9df6378393611efe39aec9d3d831d6aa9d617ae@52.78.22.32:32323?ntype=bn"
TRACE[11/25,09:24:18 +09] [33] [Dial] Skipped addStaticDial              reason="recently dialed" to="kni://63f1c96874da85140ecca3ce24875cb5ef28fa228bc3572e16f690db4a48fc8067502d2f6e8f0c66fb558276a5ada1e4906852c7ae42b0003e9f9f25d1e123b1@52.194.200.217:32323?ntype=bn"
TRACE[11/25,09:24:18 +09] [33] [Dial] Skipped addStaticDial              reason="recently dialed" to="kni://94cc15e2014b86584908707de55800c0a2ea8a24dc5550dcb507043e4cf18ff04f21dc86ed17757dc63b1fa85bb418b901e5e24e4197ad4bbb0d96cd9389ed98@18.136.251.28:32323?ntype=bn"
TRACE[11/25,09:24:18 +09] [40] New dial task                             task="discovery lookup"
TRACE[11/25,09:24:18 +09] [33] discoverTask sleep                        period=3.999393934s

outbound쪽은 당연히 tcp 모든 트래픽을 전체 0.0.0.0/0으로 열려있네요.
혹시 몰라서 포트열림도 다시 확인해봤습니다.


[ec2-user@ip-172-31-46-39 conf]$ ss -tuln | grep 32323
udp  UNCONN 0      0                                     *:32323              *:*
tcp  LISTEN 0      128                                   *:32323              *:*
[ec2-user@ip-172-31-46-39 conf]$ ss -tuln | grep 32324
tcp  LISTEN 0      128                                   *:32324              *:*
13

안녕하세요, BN은 따로 추가해줄 필요가 없는 것 같습니다. 착각드려 죄송합니다.

좀 더 살펴보고 말씀드리겠습니다. 그전에 혹시 방화벽 세팅에서 UDP outbound를 ALL로 바꿔보시고 한번 더 시도해보시겠어요?

14

image1374×198 20.2 KB

기존에 모든 프로토콜, 모든 포트, 모든 IP4에 대해 열려있었고
좀전에 IP6에 대해 전체를 대상으로 열어봤습니다.

restart이후 기존 static kni에 대한 다이얼링 관련 로그는 빠졌고
나머지 로그는 동일해 보입니다.

EBUG[11/25,15:04:16 +09] [33] [Dial] Add new discoverTypedStaticTask    name=PN
DEBUG[11/25,15:04:16 +09] [34] lookup start                              Discover=Kademlia StorageName=EN targetID=d976023b868bf8b1 targetNodeType=EN refreshIfEmpty=false
DEBUG[11/25,15:04:16 +09] [34] findNewNode: found nodes                  Discover=Table    length=0 nodeType=3
DEBUG[11/25,15:04:16 +09] [34] lookup start                              Discover=Kademlia StorageName=EN targetID=ead97031738b560b targetNodeType=EN refreshIfEmpty=false
DEBUG[11/25,15:04:16 +09] [34] findNewNode: found nodes                  Discover=Table    length=0 nodeType=3
DEBUG[11/25,15:04:16 +09] [34] lookup start                              Discover=Kademlia StorageName=EN targetID=ae5d5340a78cd2bd targetNodeType=EN refreshIfEmpty=false
DEBUG[11/25,15:04:16 +09] [34] findNewNode: found nodes                  Discover=Table    length=0 nodeType=3
DEBUG[11/25,15:04:16 +09] [34] lookup start                              Discover=Kademlia StorageName=EN targetID=76f278c74fb11107 targetNodeType=EN refreshIfEmpty=false
DEBUG[11/25,15:04:16 +09] [34] findNewNode: found nodes                  Discover=Table    length=0 nodeType=3
DEBUG[11/25,15:04:16 +09] [34] findNewNode: found nodes                  Discover=Table    length=0 nodeType=3
TRACE[11/25,15:04:16 +09] [40] New dial task                             task="discover TypedStaticTask: max: 2"
TRACE[11/25,15:04:16 +09] [40] Dial task done                            task="discovery lookup"
TRACE[11/25,15:04:16 +09] [33] [Dial] Dynamic Dials Remained Capacity    needDynDials=3 maxDynDials=3
TRACE[11/25,15:04:16 +09] [40] New dial task                             task="discovery lookup"
TRACE[11/25,15:04:16 +09] [33] discoverTask sleep                        period=3.998628107s
TRACE[11/25,15:04:20 +09] [33] discoverTask wakeup
DEBUG[11/25,15:04:20 +09] [34] lookup start                              Discover=Kademlia StorageName=EN targetID=e5d3ccb484976ad9 targetNodeType=EN refreshIfEmpty=true
TRACE[11/25,15:04:20 +09] [34] doRefresh()                               Discover=Table
DEBUG[11/25,15:04:20 +09] [34] lookup                                    Discover=Simple   StorageName=PN targetId=0000000000000000 targetType=PN
DEBUG[11/25,15:04:20 +09] [34] findNewNode: found nodes                  Discover=Table    length=0 nodeType=2
TRACE[11/25,15:04:20 +09] [33] discoverTypedStaticTask                   result=0
TRACE[11/25,15:04:20 +09] [40] Dial task done                            task="discover TypedStaticTask: max: 2"
TRACE[11/25,15:04:20 +09] [33] [Dial] discoverTypedStaticTask - done     t.name=PN result count=0
TRACE[11/25,15:04:20 +09] [33] [Dial] Dynamic Dials Remained Capacity    needDynDials=3 maxDynDials=3
DEBUG[11/25,15:04:20 +09] [33] [Dial] Add new discoverTypedStaticTask    name=PN
TRACE[11/25,15:04:20 +09] [40] New dial task                             task="discover TypedStaticTask: max: 2"
DEBUG[11/25,15:04:20 +09] [34] lookup start                              Discover=Kademlia StorageName=EN targetID=d976023b868bf8b1 targetNodeType=EN refreshIfEmpty=false
DEBUG[11/25,15:04:20 +09] [34] findNewNode: found nodes                  Discover=Table    length=0 nodeType=3
DEBUG[11/25,15:04:20 +09] [34] lookup start                              Discover=Kademlia StorageName=EN targetID=33fc46a9c02f565c targetNodeType=EN refreshIfEmpty=false
DEBUG[11/25,15:04:20 +09] [34] findNewNode: found nodes                  Discover=Table    length=0 nodeType=3
DEBUG[11/25,15:04:20 +09] [34] lookup start                              Discover=Kademlia StorageName=EN targetID=ed9890e070fa4c96 targetNodeType=EN refreshIfEmpty=false
DEBUG[11/25,15:04:20 +09] [34] findNewNode: found nodes                  Discover=Table    length=0 nodeType=3
DEBUG[11/25,15:04:20 +09] [34] lookup start                              Discover=Kademlia StorageName=EN targetID=a5fd3b8d2a4fddbe targetNodeType=EN refreshIfEmpty=false
DEBUG[11/25,15:04:20 +09] [34] findNewNode: found nodes                  Discover=Table    length=0 nodeType=3
DEBUG[11/25,15:04:20 +09] [34] findNewNode: found nodes                  Discover=Table    length=0 nodeType=3
TRACE[11/25,15:04:20 +09] [40] Dial task done                            task="discovery lookup"
TRACE[11/25,15:04:20 +09] [33] [Dial] Dynamic Dials Remained Capacity    needDynDials=3 maxDynDials=3
TRACE[11/25,15:04:20 +09] [40] New dial task                             task="discovery lookup"
TRACE[11/25,15:04:20 +09] [33] discoverTask sleep                        period=3.999604283s
1개의 좋아요
15

기존 게시물중에 nodekey 변경에 대한 내용도 있어서 새로 생성해봤으나
kni가 신규 값으로 생성되어 실행되기만 하고 변경사항은 없었습니다.

그리고 신규 kend 1.11.1 버젼으로 변경하고 실행해봤습니다.

INFO[11/25,21:16:31 +09] [4] Logging configured                        rotate=false format=terminal location=/var/kend/logs/kend.out
INFO[11/25,21:16:31 +09] [31] Enabling metrics collection
INFO[11/25,21:16:31 +09] [31] Enabling Prometheus Exporter
INFO[11/25,21:16:32 +09] [18] Setting connection type                   nodetype=en conntype=1
INFO[11/25,21:16:32 +09] [18] Setting MaxPhysicalConnections            MaxPhysicalConnections=10
INFO[11/25,21:16:32 +09] [18] A private network ID is set               networkid=8217
WARN[11/25,21:16:32 +09] [18] The fasthttp option is deprecated. Instead, the server will start with the http type
DEBUG[11/25,21:16:32 +09] [2] FS scan times                             list=33.358µs set=554ns diff=2.471µs
INFO[11/25,21:16:32 +09] [18] Raised fd limit to process's maximum value  fd=4096
TRACE[11/25,21:16:32 +09] [2] Started watching keystore folder          path=/var/kend/data/keystore
INFO[11/25,21:16:32 +09] [18] A private network ID is set               networkid=8217
INFO[11/25,21:16:32 +09] [18] Archiving mode of this node               isArchiveMode=false
DEBUG[11/25,21:16:32 +09] [18] Memory settings                           PhysicalMemory(GB)=30
DEBUG[11/25,21:16:32 +09] [18] TxResend config                           Interval=4 TxResendCount=1000 UseLegacy=false
INFO[11/25,21:16:32 +09] [40] Ntp time check                            local=2024-11-25T12:16:32.048520719Z remote=2024-11-25T12:16:32.042677135Z
INFO[11/25,21:16:32 +09] [40] Starting peer-to-peer node                instance=Klaytn/v1.11.1/linux-amd64/go1.20.6
INFO[11/25,21:16:32 +09] [48] Non-single database is used for persistent storage  DBType=LevelDB
INFO[11/25,21:16:32 +09] [48] LevelDB configurations                    path=/var/kend/data/klay/chaindata/misc levelDBCacheSize=16 openFilesLimit=40 useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/25,21:16:32 +09] [48] LevelDB configurations                    path=/var/kend/data/klay/chaindata/header levelDBCacheSize=38 openFilesLimit=102 useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/25,21:16:33 +09] [48] LevelDB configurations                    path=/var/kend/data/klay/chaindata/body   levelDBCacheSize=38 openFilesLimit=102 useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/25,21:16:33 +09] [48] LevelDB configurations                    path=/var/kend/data/klay/chaindata/receipts levelDBCacheSize=38 openFilesLimit=102 useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/25,21:16:33 +09] [48] LevelDB configurations                    path=/var/kend/data/klay/chaindata/statetrie/0 levelDBCacheSize=76 openFilesLimit=204 useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/25,21:16:33 +09] [48] LevelDB configurations                    path=/var/kend/data/klay/chaindata/statetrie/1 levelDBCacheSize=76 openFilesLimit=204 useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/25,21:16:34 +09] [48] LevelDB configurations                    path=/var/kend/data/klay/chaindata/statetrie/2 levelDBCacheSize=76 openFilesLimit=204 useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/25,21:16:34 +09] [48] LevelDB configurations                    path=/var/kend/data/klay/chaindata/statetrie/3 levelDBCacheSize=76 openFilesLimit=204 useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/25,21:16:34 +09] [48] Created a sharded database                dbType=statetrie numShards=4
INFO[11/25,21:16:34 +09] [48] LevelDB configurations                    path=/var/kend/data/klay/chaindata/txlookup    levelDBCacheSize=16 openFilesLimit=40  useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/25,21:16:35 +09] [48] LevelDB configurations                    path=/var/kend/data/klay/chaindata/bridgeservice levelDBCacheSize=16 openFilesLimit=20  useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/25,21:16:35 +09] [48] LevelDB configurations                    path=/var/kend/data/klay/chaindata/snapshot      levelDBCacheSize=22 openFilesLimit=61  useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/25,21:16:35 +09] [30] Successfully loaded governance state from database  blockNumber=169878528
INFO[11/25,21:16:35 +09] [41] Initialised chain configuration           config="{ChainID: 8217 IstanbulCompatibleBlock: 86816005 LondonCompatibleBlock: 86816005 EthTxTypeCompatibleBlock: 86816005 MagmaCompatibleBlock: 99841497 KoreCompatibleBlock: 119750400 ShanghaiCompatibleBlock: 135456000 KIP103CompatibleBlock: 119750400 KIP103ContractAddress 0xD5ad6D61Dd87EdabE2332607C328f5cc96aeCB95 SubGroupSize: 22 UnitPrice: 25000000000 DeriveShaImpl: 2 Engine: istanbul}"
INFO[11/25,21:16:35 +09] [41] Initialising Klaytn protocol              versions="[65 64]" network=8217
INFO[11/25,21:16:35 +09] [49] Initializing local trie node cache (fastCache)  MaxMiB=9489 FilePath=/var/kend/data/fastcache
INFO[11/25,21:16:35 +09] [49] Initialized local trie node cache (fastCache)  LoadedMiB=0 LoadedEntries=0 elapsed=1.420229ms
ERROR[11/25,21:16:35 +09] [48] Invalid block header RLP                  hash=e36e3d…646bca err="rlp: input list has too many elements for types.Header"
ERROR[11/25,21:16:35 +09] [48] Invalid block header RLP                  hash=14898c…82f7d6 err="rlp: input list has too many elements for types.Header"
ERROR[11/25,21:16:35 +09] [48] Invalid block header RLP                  hash=e36e3d…646bca err="rlp: input list has too many elements for types.Header"
ERROR[11/25,21:16:35 +09] [48] Invalid block header RLP                  hash=14898c…82f7d6 err="rlp: input list has too many elements for types.Header"
ERROR[11/25,21:16:35 +09] [5] Head block missing, resetting chain       hash=0x14898c1d0959e50b2d93d752824bccbc8a57d59f09a7920039456f85a982f7d6
WARN[11/25,21:16:35 +09] [5] Rewinding blockchain                      target=0
ERROR[11/25,21:16:35 +09] [48] Invalid block header RLP                  hash=e36e3d…646bca                                                      err="rlp: input list has too many elements for types.Header"
ERROR[11/25,21:16:35 +09] [48] Invalid block header RLP                  hash=14898c…82f7d6                                                      err="rlp: input list has too many elements for types.Header"
ERROR[11/25,21:16:35 +09] [5] Head block missing, resetting chain       hash=0x14898c1d0959e50b2d93d752824bccbc8a57d59f09a7920039456f85a982f7d6

로그가 바뀌긴 했는데 마찬가지로 마지막 로그이후 변경이 없습니다.

혹시 시도해볼만 부분이 있는지요?

data파일을 다운받아 변경해보는정도가 남아있는거 같은데 변경전 클튼쪽에서 로그 살펴보고 내용이 있는지 확인부탁드려요

1개의 좋아요
16

kend 1.11.1 버전으로 실행시키시면 최신 HF를 포함하고 있는 체인데이터와 노드 바이너리가 호환되지 않습니다.

1개의 좋아요
17

여러가지 시도중이라 ami en 인스턴스를 3개 생성해봤습니다.

  1. 초기상태
  2. 1.11.1로 업그레이드후 실행
  3. 체인데이터 교체
    /var/kend/data폴더 전체삭제후 체인데이터 (kaia-cypress-chaindata-20241120011111.tar.gz)
    다운로드하고 교체.

1번,2번 en은 동작이 안되고
3번 en은 데이터 교체후 오류가 발생해서 live pruning관련 오류가 있어서
아래와 같이 conf변경했습니다.
#ADDITIONAL=“–state.live-pruning”
ADDITIONAL=“”

변경후 로그는 1번과 동일한 상태가 됩니다.

ACE[11/26,19:21:48 +09] [33] discoverTask sleep                        period=3.999467565s
TRACE[11/26,19:21:50 +09] [25] PN/EN doesn't need to handle timeout messages  nodeType=1
TRACE[11/26,19:21:52 +09] [33] discoverTask wakeup
DEBUG[11/26,19:21:52 +09] [34] lookup start                              Discover=Kademlia StorageName=EN targetID=68ff394825b3be48 targetNodeType=EN refreshIfEmpty=true
TRACE[11/26,19:21:52 +09] [34] doRefresh()                               Discover=Table
DEBUG[11/26,19:21:52 +09] [34] lookup                                    Discover=Simple   StorageName=PN targetId=0000000000000000 targetType=PN
DEBUG[11/26,19:21:52 +09] [34] findNewNode: found nodes                  Discover=Table    length=0 nodeType=2
TRACE[11/26,19:21:52 +09] [33] discoverTypedStaticTask                   result=0
TRACE[11/26,19:21:52 +09] [40] Dial task done                            task="discover TypedStaticTask: max: 2"
TRACE[11/26,19:21:52 +09] [33] [Dial] discoverTypedStaticTask - done     t.name=PN result count=0
TRACE[11/26,19:21:52 +09] [33] [Dial] Dynamic Dials Remained Capacity    needDynDials=3 maxDynDials=3
DEBUG[11/26,19:21:52 +09] [34] lookup start                              Discover=Kademlia StorageName=EN targetID=7656ad182305ca6f targetNodeType=EN refreshIfEmpty=false
DEBUG[11/26,19:21:52 +09] [34] findNewNode: found nodes                  Discover=Table    length=0 nodeType=3
DEBUG[11/26,19:21:52 +09] [34] lookup start                              Discover=Kademlia StorageName=EN targetID=62dccf82c0b4304b targetNodeType=EN refreshIfEmpty=false
DEBUG[11/26,19:21:52 +09] [34] findNewNode: found nodes                  Discover=Table    length=0 nodeType=3
DEBUG[11/26,19:21:52 +09] [34] lookup start                              Discover=Kademlia StorageName=EN targetID=b3b3dd6d58540907 targetNodeType=EN refreshIfEmpty=false
DEBUG[11/26,19:21:52 +09] [34] findNewNode: found nodes                  Discover=Table    length=0 nodeType=3
DEBUG[11/26,19:21:52 +09] [34] lookup start                              Discover=Kademlia StorageName=EN targetID=7f6729ee57375525 targetNodeType=EN refreshIfEmpty=false
DEBUG[11/26,19:21:52 +09] [33] [Dial] Add new discoverTypedStaticTask    name=PN
TRACE[11/26,19:21:52 +09] [40] New dial task                             task="discover TypedStaticTask: max: 2"
DEBUG[11/26,19:21:52 +09] [34] findNewNode: found nodes                  Discover=Table    length=0 nodeType=3
DEBUG[11/26,19:21:52 +09] [34] findNewNode: found nodes                  Discover=Table    length=0 nodeType=3
TRACE[11/26,19:21:52 +09] [40] Dial task done                            task="discovery lookup"
TRACE[11/26,19:21:52 +09] [33] [Dial] Dynamic Dials Remained Capacity    needDynDials=3 maxDynDials=3
TRACE[11/26,19:21:52 +09] [40] New dial task                             task="discovery lookup"
TRACE[11/26,19:21:52 +09] [33] discoverTask sleep                        period=3.999531863s
DEBUG[11/26,19:21:54 +09] [28] Recalculated downloader QoS values        rtt=20s confidence=1.000 ttl=1m0s
TRACE[11/26,19:21:56 +09] [33] discoverTask wakeup
DEBUG[11/26,19:21:56 +09] [34] lookup start                              Discover=Kademlia StorageName=EN targetID=7bb075c3ec069359 targetNodeType=EN refreshIfEmpty=true
TRACE[11/26,19:21:56 +09] [34] doRefresh()                               Discover=Table
DEBUG[11/26,19:21:56 +09] [34] lookup                                    Discover=Simple   StorageName=PN targetId=0000000000000000 targetType=PN
DEBUG[11/26,19:21:56 +09] [34] findNewNode: found nodes                  Discover=Table    length=0 nodeType=2
TRACE[11/26,19:21:56 +09] [33] discoverTypedStaticTask                   result=0
TRACE[11/26,19:21:56 +09] [40] Dial task done                            task="discover TypedStaticTask: max: 2"
TRACE[11/26,19:21:56 +09] [33] [Dial] discoverTypedStaticTask - done     t.name=PN result count=0
TRACE[11/26,19:21:56 +09] [33] [Dial] Dynamic Dials Remained Capacity    needDynDials=3 maxDynDials=3
DEBUG[11/26,19:21:56 +09] [34] lookup start                              Discover=Kademlia StorageName=EN targetID=7656ad182305ca6f targetNodeType=EN refreshIfEmpty=false
DEBUG[11/26,19:21:56 +09] [33] [Dial] Add new discoverTypedStaticTask    name=PN
DEBUG[11/26,19:21:56 +09] [34] findNewNode: found nodes                  Discover=Table    length=0 nodeType=3
DEBUG[11/26,19:21:56 +09] [34] lookup start                              Discover=Kademlia StorageName=EN targetID=cbecc368e2225550 targetNodeType=EN refreshIfEmpty=false
DEBUG[11/26,19:21:56 +09] [34] findNewNode: found nodes                  Discover=Table    length=0 nodeType=3
TRACE[11/26,19:21:56 +09] [40] New dial task                             task="discover TypedStaticTask: max: 2"
DEBUG[11/26,19:21:56 +09] [34] lookup start                              Discover=Kademlia StorageName=EN targetID=e9f9cea854aeba6e targetNodeType=EN refreshIfEmpty=false
DEBUG[11/26,19:21:56 +09] [34] findNewNode: found nodes                  Discover=Table    length=0 nodeType=3
DEBUG[11/26,19:21:56 +09] [34] lookup start                              Discover=Kademlia StorageName=EN targetID=7f4425d5c541cb23 targetNodeType=EN refreshIfEmpty=false
DEBUG[11/26,19:21:56 +09] [34] findNewNode: found nodes                  Discover=Table    length=0 nodeType=3
DEBUG[11/26,19:21:56 +09] [34] findNewNode: found nodes                  Discover=Table    length=0 nodeType=3
TRACE[11/26,19:21:56 +09] [40] Dial task done                            task="discovery lookup"
TRACE[11/26,19:21:56 +09] [33] [Dial] Dynamic Dials Remained Capacity    needDynDials=3 maxDynDials=3
TRACE[11/26,19:21:56 +09] [40] New dial task                             task="discovery lookup"
TRACE[11/26,19:21:56 +09] [33] discoverTask sleep                        period=3.999514102s

3번 en노드를 kend 1.11.1로 업그레이드 하는것은 의미가 없는거죠?

18

추가로 진행하고 있는것은 full type AMI instance를 생성해서 fio중입니다.
기존 테스트는 pruning type로 진행했었습니다.

11월27일 00시 기준
진행결과 공유…

full type 노드도 로그는 다르게 나오긴합니다만 결과적으로 동기화가 진행되지 않았습니다.
네트워크 이슈에 대한 부분도 극단적으로 설정해서 인바운드, 아웃바운드 양쪽 모든 프로토콜, 모든 포트, 모든 IPv4에 대해서 열고 다시 kend restart 했지만 아래와 같은 로그가 계속되고 동기화는 진행되지 않았습니다.

현재는 기존 서버 호스팅 해서 사용하던 노드의 디스크 공간을 최대한 확보해서 몇달정도 운영가능한 상태로 만들었습니다.

일단 현재 문제는 해결하지 못하고 종료하겠습니다.
인스턴스도 모두 삭제했습니다.

신경써 주셔서 감사합니다.

INFO[11/26,23:38:51 +09] [33] [Dial] Add dial candidate from static nodes  id=cfaecb1667729b4a NodeType=2 ip=220.95.227.29  mainPort=32323 port=[32323]
INFO[11/26,23:38:51 +09] [33] [Dial] Add dial candidate from static nodes  id=d4ffbb05de66b70d NodeType=2 ip=3.112.180.185  mainPort=32323 port=[32323]
INFO[11/26,23:38:51 +09] [33] [Dial] Add dial candidate from static nodes  id=a32349656b5d148b NodeType=2 ip=13.114.79.170  mainPort=32323 port=[32323]
INFO[11/26,23:38:59 +09] [18] Got interrupt, shutting down...
INFO[11/26,23:38:59 +09] [40] WebSocket endpoint closed                 url=ws://0.0.0.0:8552
INFO[11/26,23:38:59 +09] [40] HTTP endpoint closed                      url=http://0.0.0.0:8551
INFO[11/26,23:38:59 +09] [40] IPC endpoint closed                       endpoint=/var/kend/data/klay.ipc
INFO[11/26,23:38:59 +09] [41] Stopping Kaia protocol
INFO[11/26,23:38:59 +09] [41] Kaia protocol stopped
INFO[11/26,23:38:59 +09] [29] Terminated insertWorker
INFO[11/26,23:38:59 +09] [5] Transaction pool stopped
INFO[11/26,23:38:59 +09] [44] unable to start chain head event          err="chain head channel is not set"
INFO[11/26,23:38:59 +09] [5] Writing cached state to disk              block=170393216 hash=ef3e8d…62ed58                                                      root=241492…66e384
INFO[11/26,23:38:59 +09] [49] Persisted trie from memory database       blockNum=170393216 updated nodes=0 updated nodes size=0.00B  time=19.674µs  gcnodes=0 gcsize=0.00B gctime=0s livenodes=1 livesize=0.00B preimages=0 pruningMarks=0
INFO[11/26,23:38:59 +09] [5] Blockchain manager stopped
INFO[11/26,23:38:59 +09] [48] Database closed                           path=/var/kend/data/klay/chaindata/misc
INFO[11/26,23:38:59 +09] [48] Database closed                           path=/var/kend/data/klay/chaindata/header
INFO[11/26,23:38:59 +09] [48] Database closed                           path=/var/kend/data/klay/chaindata/body
INFO[11/26,23:38:59 +09] [48] Database closed                           path=/var/kend/data/klay/chaindata/receipts
INFO[11/26,23:38:59 +09] [48] Database closed                           path=/var/kend/data/klay/chaindata/statetrie/0
INFO[11/26,23:39:00 +09] [48] Database closed                           path=/var/kend/data/klay/chaindata/statetrie/1
INFO[11/26,23:39:00 +09] [48] Database closed                           path=/var/kend/data/klay/chaindata/statetrie/2
INFO[11/26,23:39:00 +09] [48] Database closed                           path=/var/kend/data/klay/chaindata/statetrie/3
INFO[11/26,23:39:00 +09] [48] Database closed                           path=/var/kend/data/klay/chaindata/txlookup
INFO[11/26,23:39:00 +09] [48] Database closed                           path=/var/kend/data/klay/chaindata/bridgeservice
INFO[11/26,23:39:00 +09] [48] Database closed                           path=/var/kend/data/klay/chaindata/snapshot
INFO[11/26,23:39:02 +09] [4] Logging configured                        rotate=false format=terminal location=/var/kend/logs/kend.out
INFO[11/26,23:39:02 +09] [31] Enabling metrics collection
INFO[11/26,23:39:02 +09] [31] Enabling Prometheus Exporter
INFO[11/26,23:39:02 +09] [18] Setting connection type                   nodetype=en conntype=1
INFO[11/26,23:39:02 +09] [18] Mainnet bootnodes are set
INFO[11/26,23:39:02 +09] [18] Bootnode - Add Seed                       Node="kni://18b36118cce093673499fc6e9aa196f047fe17a0de35b6f2a76a4557802f6abf9f89aa5e7330e93c9014b714b9df6378393611efe39aec9d3d831d6aa9d617ae@52.78.22.32:32323?ntype=bn"
INFO[11/26,23:39:02 +09] [18] Bootnode - Add Seed                       Node="kni://63f1c96874da85140ecca3ce24875cb5ef28fa228bc3572e16f690db4a48fc8067502d2f6e8f0c66fb558276a5ada1e4906852c7ae42b0003e9f9f25d1e123b1@52.194.200.217:32323?ntype=bn"
INFO[11/26,23:39:02 +09] [18] Bootnode - Add Seed                       Node="kni://94cc15e2014b86584908707de55800c0a2ea8a24dc5550dcb507043e4cf18ff04f21dc86ed17757dc63b1fa85bb418b901e5e24e4197ad4bbb0d96cd9389ed98@18.136.251.28:32323?ntype=bn"
INFO[11/26,23:39:02 +09] [18] Setting MaxPhysicalConnections            MaxPhysicalConnections=10
INFO[11/26,23:39:02 +09] [18] Mainnet network ID is set                 networkid=8217
WARN[11/26,23:39:02 +09] [18] The fasthttp option is deprecated. Instead, the server will start with the http type
INFO[11/26,23:39:02 +09] [18] Raised fd limit to process's maximum value  fd=1048576
INFO[11/26,23:39:02 +09] [18] Mainnet network ID is set                 networkid=8217
INFO[11/26,23:39:02 +09] [18] Archiving mode of this node               isArchiveMode=false
INFO[11/26,23:39:02 +09] [40] Ntp time check                            local=2024-11-26T14:39:02.704551053Z remote=2024-11-26T14:39:02.702252664Z
INFO[11/26,23:39:02 +09] [40] Starting peer-to-peer node                instance=Klaytn/v1.0.3/linux-amd64/go1.22.1
INFO[11/26,23:39:02 +09] [48] Non-single database is used for persistent storage  DBType=LevelDB
INFO[11/26,23:39:02 +09] [48] LevelDB configurations                    path=/var/kend/data/klay/chaindata/misc levelDBCacheSize=16 openFilesLimit=10485 useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/26,23:39:02 +09] [48] LevelDB configurations                    path=/var/kend/data/klay/chaindata/header levelDBCacheSize=38 openFilesLimit=26214 useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/26,23:39:03 +09] [48] LevelDB configurations                    path=/var/kend/data/klay/chaindata/body   levelDBCacheSize=38 openFilesLimit=26214 useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/26,23:39:03 +09] [48] LevelDB configurations                    path=/var/kend/data/klay/chaindata/receipts levelDBCacheSize=38 openFilesLimit=26214 useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/26,23:39:04 +09] [48] LevelDB configurations                    path=/var/kend/data/klay/chaindata/statetrie/0 levelDBCacheSize=76 openFilesLimit=52428 useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/26,23:39:08 +09] [48] LevelDB configurations                    path=/var/kend/data/klay/chaindata/statetrie/1 levelDBCacheSize=76 openFilesLimit=52428 useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/26,23:39:13 +09] [48] LevelDB configurations                    path=/var/kend/data/klay/chaindata/statetrie/2 levelDBCacheSize=76 openFilesLimit=52428 useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/26,23:39:18 +09] [48] LevelDB configurations                    path=/var/kend/data/klay/chaindata/statetrie/3 levelDBCacheSize=76 openFilesLimit=52428 useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/26,23:39:23 +09] [48] Created a sharded database                dbType=statetrie numShards=4
INFO[11/26,23:39:23 +09] [48] LevelDB configurations                    path=/var/kend/data/klay/chaindata/txlookup    levelDBCacheSize=16 openFilesLimit=10485 useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/26,23:39:23 +09] [48] LevelDB configurations                    path=/var/kend/data/klay/chaindata/bridgeservice levelDBCacheSize=16 openFilesLimit=5242  useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/26,23:39:23 +09] [48] LevelDB configurations                    path=/var/kend/data/klay/chaindata/snapshot      levelDBCacheSize=22 openFilesLimit=15728 useBufferPool=true usePerfCheck=true compressionType=none compactionTableSize(MB)=2 compactionTableSizeMultiplier=1.000
INFO[11/26,23:39:23 +09] [5] InitDeriveSha                             initial=2 withGov=false
INFO[11/26,23:39:23 +09] [49] Persisted trie from memory database       blockNum=0 updated nodes=9 updated nodes size=1.07kB time=166.155µs gcnodes=0 gcsize=0.00B gctime=0s livenodes=1 livesize=0.00B preimages=7 pruningMarks=0
INFO[11/26,23:39:23 +09] [5] Restored state trie for the genesis block
INFO[11/26,23:39:23 +09] [30] Successfully loaded governance state from database  blockNumber=170392576
INFO[11/26,23:39:23 +09] [41] Initialised chain configuration           config="{ChainID: 8217 IstanbulCompatibleBlock: 86816005 LondonCompatibleBlock: 86816005 EthTxTypeCompatibleBlock: 86816005 MagmaCompatibleBlock: 99841497 KoreCompatibleBlock: 119750400 ShanghaiCompatibleBlock: 135456000 CancunCompatibleBlock: 147534000 KaiaCompatibleBlock: 162900480 RandaoCompatibleBlock: 147534000 KIP103CompatibleBlock: 119750400 KIP103ContractAddress 0xD5ad6D61Dd87EdabE2332607C328f5cc96aeCB95 KIP160CompatibleBlock: 162900480 KIP160ContractAddress 0xa4df15717Da40077C0aD528296AdBBd046579Ee9 SubGroupSize: 22 UnitPrice: 25000000000 DeriveShaImpl: 2 Engine: istanbul}"
INFO[11/26,23:39:23 +09] [41] Initialising Klaytn protocol              versions="[65 64]" network=8217
INFO[11/26,23:39:23 +09] [49] Initializing local trie node cache (fastCache)  MaxMiB=5000 FilePath=/var/kend/data/fastcache
INFO[11/26,23:39:23 +09] [49] Initialized local trie node cache (fastCache)  LoadedMiB=0 LoadedEntries=0 elapsed=1.00506ms
INFO[11/26,23:39:23 +09] [5] Loaded most recent local header           number=170393321 hash=7244e1…2704aa td=170393322 age=2d14h29m
INFO[11/26,23:39:23 +09] [5] Loaded most recent local full block       number=170393216 hash=ef3e8d…62ed58 td=170393217 age=2d14h29m
INFO[11/26,23:39:23 +09] [5] Loaded most recent local fast block       number=170393321 hash=7244e1…2704aa td=170393322 age=2d14h29m
INFO[11/26,23:39:23 +09] [5] prefetchTxWorkers are started             num=32
INFO[11/26,23:39:23 +09] [41] Live pruning is disabled because flag not stored in database
INFO[11/26,23:39:23 +09] [5] InitDeriveSha                             initial=0 withGov=true
INFO[11/26,23:39:23 +09] [5] Loaded local transaction journal          transactions=24 dropped=0
INFO[11/26,23:39:23 +09] [5] Regenerated local transaction journal     transactions=24 accounts=16
INFO[11/26,23:39:23 +09] [41] Start creating istanbul snapshot
INFO[11/26,23:39:53 +09] [41] Finished creating istanbul snapshot
INFO[11/26,23:39:53 +09] [40] Starting P2P networking
INFO[11/26,23:39:53 +09] [40] Started P2P server                        id=7c6a0befc495ca47 multichannel=true
INFO[11/26,23:39:53 +09] [40] RLPx listener up                          self="kni://7c6a0befc495ca471fe64edb054ff1e13d36fa10567e1b5f37b981509f42ef80199a79e32b438e68031ebd05312c1923dfab5c492abacc2be9b55531e093d487@[::]:32323?discport=0"
INFO[11/26,23:39:53 +09] [40] RLPx listener up                          self="kni://7c6a0befc495ca471fe64edb054ff1e13d36fa10567e1b5f37b981509f42ef80199a79e32b438e68031ebd05312c1923dfab5c492abacc2be9b55531e093d487@[::]:32324?discport=0"
INFO[11/26,23:39:53 +09] [33] [Dial] Add dial candidate from static nodes  id=d4ffbb05de66b70d NodeType=2 ip=3.112.180.185 mainPort=32323 port=[32323]
INFO[11/26,23:39:53 +09] [33] [Dial] Add dial candidate from static nodes  id=894d36bec91ec574 NodeType=2 ip=54.248.156.169 mainPort=32323 port=[32323]
INFO[11/26,23:39:53 +09] [33] [Dial] Add dial candidate from static nodes  id=9610341f6b19c1e1 NodeType=2 ip=35.72.243.255  mainPort=32323 port=[32323]
INFO[11/26,23:39:53 +09] [33] [Dial] Add dial candidate from static nodes  id=eabe6c17d9193946 NodeType=2 ip=3.37.155.23    mainPort=32323 port=[32323]
INFO[11/26,23:39:53 +09] [33] [Dial] Add dial candidate from static nodes  id=a32349656b5d148b NodeType=2 ip=13.114.79.170  mainPort=32323 port=[32323]
INFO[11/26,23:39:53 +09] [33] [Dial] Add dial candidate from static nodes  id=b42e1c9f6a0944c6 NodeType=2 ip=34.64.132.124  mainPort=32323 port=[32323]
INFO[11/26,23:39:53 +09] [33] [Dial] Add dial candidate from static nodes  id=9f228af429ff54d7 NodeType=2 ip=35.240.142.85  mainPort=32323 port=[32323]
INFO[11/26,23:39:53 +09] [44] Total supply big step catchup done        last=170393216 minted=11455786396800000000000000000 burntFee=4554577715358492516528594
INFO[11/26,23:39:53 +09] [33] [Dial] Add dial candidate from static nodes  id=54e38cdba0b0689e NodeType=2 ip=18.178.108.35  mainPort=32323 port=[32323]
INFO[11/26,23:39:53 +09] [33] [Dial] Add dial candidate from static nodes  id=0b0dbeb296bf4fc5 NodeType=2 ip=34.22.84.254   mainPort=32323 port=[32323]
INFO[11/26,23:39:53 +09] [33] [Dial] Add dial candidate from static nodes  id=d5d1afe3c1b50ca4 NodeType=2 ip=34.64.81.2     mainPort=32323 port=[32323]
INFO[11/26,23:39:53 +09] [33] [Dial] Add dial candidate from static nodes  id=7cf316eda017f4e3 NodeType=2 ip=3.39.19.249    mainPort=32323 port=[32323]
INFO[11/26,23:39:53 +09] [33] [Dial] Add dial candidate from static nodes  id=cb35ce4866635523 NodeType=2 ip=220.95.227.28  mainPort=32323 port=[32323]
INFO[11/26,23:39:53 +09] [33] [Dial] Add dial candidate from static nodes  id=cfaecb1667729b4a NodeType=2 ip=220.95.227.29  mainPort=32323 port=[32323]
INFO[11/26,23:39:53 +09] [33] [Dial] Add dial candidate from static nodes  id=0411f6cac605c8b9 NodeType=2 ip=52.198.133.203 mainPort=32323 port=[32323]
INFO[11/26,23:39:53 +09] [40] IPC endpoint opened                       url=/var/kend/data/klay.ipc
INFO[11/26,23:39:53 +09] [40] HTTP endpoint opened                      url=http://0.0.0.0:8551     cors=* vhosts=*
INFO[11/26,23:39:53 +09] [40] WebSocket endpoint opened                 url=ws://[::]:8552
INFO[11/26,23:40:23 +09] [33] [Dial] Add dial candidate from static nodes  id=7cf316eda017f4e3 NodeType=2 ip=3.39.19.249    mainPort=32323 port=[32323]
INFO[11/26,23:40:23 +09] [33] [Dial] Add dial candidate from static nodes  id=b42e1c9f6a0944c6 NodeType=2 ip=34.64.132.124  mainPort=32323 port=[32323]
INFO[11/26,23:40:23 +09] [33] [Dial] Add dial candidate from static nodes  id=d5d1afe3c1b50ca4 NodeType=2 ip=34.64.81.2     mainPort=32323 port=[32323]
INFO[11/26,23:40:23 +09] [33] [Dial] Add dial candidate from static nodes  id=cb35ce4866635523 NodeType=2 ip=220.95.227.28  mainPort=32323 port=[32323]
INFO[11/26,23:40:24 +09] [33] [Dial] Add dial candidate from static nodes  id=54e38cdba0b0689e NodeType=2 ip=18.178.108.35  mainPort=32323 port=[32323]
INFO[11/26,23:40:24 +09] [33] [Dial] Add dial candidate from static nodes  id=0411f6cac605c8b9 NodeType=2 ip=52.198.133.203 mainPort=32323 port=[32323]
INFO[11/26,23:40:38 +09] [33] [Dial] Add dial candidate from static nodes  id=9610341f6b19c1e1 NodeType=2 ip=35.72.243.255  mainPort=32323 port=[32323]
INFO[11/26,23:40:38 +09] [33] [Dial] Add dial candidate from static nodes  id=894d36bec91ec574 NodeType=2 ip=54.248.156.169 mainPort=32323 port=[32323]
INFO[11/26,23:40:38 +09] [33] [Dial] Add dial candidate from static nodes  id=0b0dbeb296bf4fc5 NodeType=2 ip=34.22.84.254   mainPort=32323 port=[32323]
INFO[11/26,23:40:38 +09] [33] [Dial] Add dial candidate from static nodes  id=eabe6c17d9193946 NodeType=2 ip=3.37.155.23    mainPort=32323 port=[32323]
INFO[11/26,23:40:38 +09] [33] [Dial] Add dial candidate from static nodes  id=a32349656b5d148b NodeType=2 ip=13.114.79.170  mainPort=32323 port=[32323]
INFO[11/26,23:40:38 +09] [33] [Dial] Add dial candidate from static nodes  id=9f228af429ff54d7 NodeType=2 ip=35.240.142.85  mainPort=32323 port=[32323]
INFO[11/26,23:40:38 +09] [33] [Dial] Add dial candidate from static nodes  id=cfaecb1667729b4a NodeType=2 ip=220.95.227.29  mainPort=32323 port=[32323]
INFO[11/26,23:40:38 +09] [33] [Dial] Add dial candidate from static nodes  id=d4ffbb05de66b70d NodeType=2 ip=3.112.180.185  mainPort=32323 port=[32323]
INFO[11/26,23:40:53 +09] [33] [Dial] Add dial candidate from static nodes  id=7cf316eda017f4e3 NodeType=2 ip=3.39.19.249    mainPort=32323 port=[32323]
INFO[11/26,23:40:53 +09] [33] [Dial] Add dial candidate from static nodes  id=b42e1c9f6a0944c6 NodeType=2 ip=34.64.132.124  mainPort=32323 port=[32323]
INFO[11/26,23:40:53 +09] [33] [Dial] Add dial candidate from static nodes  id=d5d1afe3c1b50ca4 NodeType=2 ip=34.64.81.2     mainPort=32323 port=[32323]
INFO[11/26,23:40:54 +09] [33] [Dial] Add dial candidate from static nodes  id=cb35ce4866635523 NodeType=2 ip=220.95.227.28  mainPort=32323 port=[32323]
INFO[11/26,23:40:54 +09] [33] [Dial] Add dial candidate from static nodes  id=54e38cdba0b0689e NodeType=2 ip=18.178.108.35  mainPort=32323 port=[32323]
INFO[11/26,23:40:54 +09] [33] [Dial] Add dial candidate from static nodes  id=0411f6cac605c8b9 NodeType=2 ip=52.198.133.203 mainPort=32323 port=[32323]
INFO[11/26,23:41:23 +09] [33] [Dial] Add dial candidate from static nodes  id=9f228af429ff54d7 NodeType=2 ip=35.240.142.85  mainPort=32323 port=[32323]
INFO[11/26,23:41:23 +09] [33] [Dial] Add dial candidate from static nodes  id=0b0dbeb296bf4fc5 NodeType=2 ip=34.22.84.254   mainPort=32323 port=[32323]
INFO[11/26,23:41:23 +09] [33] [Dial] Add dial candidate from static nodes  id=eabe6c17d9193946 NodeType=2 ip=3.37.155.23    mainPort=32323 port=[32323]
INFO[11/26,23:41:23 +09] [33] [Dial] Add dial candidate from static nodes  id=a32349656b5d148b NodeType=2 ip=13.114.79.170  mainPort=32323 port=[32323]
INFO[11/26,23:41:23 +09] [33] [Dial] Add dial candidate from static nodes  id=cfaecb1667729b4a NodeType=2 ip=220.95.227.29  mainPort=32323 port=[32323]
INFO[11/26,23:41:23 +09] [33] [Dial] Add dial candidate from static nodes  id=d4ffbb05de66b70d NodeType=2 ip=3.112.180.185  mainPort=32323 port=[32323]
INFO[11/26,23:41:23 +09] [33] [Dial] Add dial candidate from static nodes  id=894d36bec91ec574 NodeType=2 ip=54.248.156.169 mainPort=32323 port=[32323]
INFO[11/26,23:41:23 +09] [33] [Dial] Add dial candidate from static nodes  id=9610341f6b19c1e1 NodeType=2 ip=35.72.243.255  mainPort=32323 port=[32323]
INFO[11/26,23:41:38 +09] [33] [Dial] Add dial candidate from static nodes  id=54e38cdba0b0689e NodeType=2 ip=18.178.108.35  mainPort=32323 port=[32323]
INFO[11/26,23:41:38 +09] [33] [Dial] Add dial candidate from static nodes  id=b42e1c9f6a0944c6 NodeType=2 ip=34.64.132.124  mainPort=32323 port=[32323]
INFO[11/26,23:41:38 +09] [33] [Dial] Add dial candidate from static nodes  id=cb35ce4866635523 NodeType=2 ip=220.95.227.28  mainPort=32323 port=[32323]
INFO[11/26,23:41:38 +09] [33] [Dial] Add dial candidate from static nodes  id=0411f6cac605c8b9 NodeType=2 ip=52.198.133.203 mainPort=32323 port=[32323]
INFO[11/26,23:41:38 +09] [33] [Dial] Add dial candidate from static nodes  id=d5d1afe3c1b50ca4 NodeType=2 ip=34.64.81.2     mainPort=32323 port=[32323]
INFO[11/26,23:41:38 +09] [33] [Dial] Add dial candidate from static nodes  id=7cf316eda017f4e3 NodeType=2 ip=3.39.19.249    mainPort=32323 port=[32323]
INFO[11/26,23:42:08 +09] [33] [Dial] Add dial candidate from static nodes  id=d4ffbb05de66b70d NodeType=2 ip=3.112.180.185  mainPort=32323 port=[32323]
INFO[11/26,23:42:08 +09] [33] [Dial] Add dial candidate from static nodes  id=894d36bec91ec574 NodeType=2 ip=54.248.156.169 mainPort=32323 port=[32323]
INFO[11/26,23:42:08 +09] [33] [Dial] Add dial candidate from static nodes  id=9610341f6b19c1e1 NodeType=2 ip=35.72.243.255  mainPort=32323 port=[32323]
INFO[11/26,23:42:08 +09] [33] [Dial] Add dial candidate from static nodes  id=eabe6c17d9193946 NodeType=2 ip=3.37.155.23    mainPort=32323 port=[32323]
INFO[11/26,23:42:08 +09] [33] [Dial] Add dial candidate from static nodes  id=a32349656b5d148b NodeType=2 ip=13.114.79.170  mainPort=32323 port=[32323]
INFO[11/26,23:42:08 +09] [33] [Dial] Add dial candidate from static nodes  id=9f228af429ff54d7 NodeType=2 ip=35.240.142.85  mainPort=32323 port=[32323]
INFO[11/26,23:42:08 +09] [33] [Dial] Add dial candidate from static nodes  id=0b0dbeb296bf4fc5 NodeType=2 ip=34.22.84.254   mainPort=32323 port=[32323]
INFO[11/26,23:42:08 +09] [33] [Dial] Add dial candidate from static nodes  id=cfaecb1667729b4a NodeType=2 ip=220.95.227.29  mainPort=32323 port=[32323]
INFO[11/26,23:42:23 +09] [33] [Dial] Add dial candidate from static nodes  id=54e38cdba0b0689e NodeType=2 ip=18.178.108.35  mainPort=32323 port=[32323]
INFO[11/26,23:42:23 +09] [33] [Dial] Add dial candidate from static nodes  id=b42e1c9f6a0944c6 NodeType=2 ip=34.64.132.124  mainPort=32323 port=[32323]
INFO[11/26,23:42:23 +09] [33] [Dial] Add dial candidate from static nodes  id=cb35ce4866635523 NodeType=2 ip=220.95.227.28  mainPort=32323 port=[32323]
INFO[11/26,23:42:23 +09] [33] [Dial] Add dial candidate from static nodes  id=0411f6cac605c8b9 NodeType=2 ip=52.198.133.203 mainPort=32323 port=[32323]
INFO[11/26,23:42:23 +09] [33] [Dial] Add dial candidate from static nodes  id=d5d1afe3c1b50ca4 NodeType=2 ip=34.64.81.2     mainPort=32323 port=[32323]
INFO[11/26,23:42:23 +09] [33] [Dial] Add dial candidate from static nodes  id=7cf316eda017f4e3 NodeType=2 ip=3.39.19.249    mainPort=32323 port=[32323]
INFO[11/26,23:42:53 +09] [33] [Dial] Add dial candidate from static nodes  id=eabe6c17d9193946 NodeType=2 ip=3.37.155.23    mainPort=32323 port=[32323]
INFO[11/26,23:43:08 +09] [33] [Dial] Add dial candidate from static nodes  id=cfaecb1667729b4a NodeType=2 ip=220.95.227.29  mainPort=32323 port=[32323]
INFO[11/26,23:43:08 +09] [33] [Dial] Add dial candidate from static nodes  id=0411f6cac605c8b9 NodeType=2 ip=52.198.133.203 mainPort=32323 port=[32323]
INFO[11/26,23:43:08 +09] [33] [Dial] Add dial candidate from static nodes  id=d5d1afe3c1b50ca4 NodeType=2 ip=34.64.81.2     mainPort=32323 port=[32323]
INFO[11/26,23:43:08 +09] [33] [Dial] Add dial candidate from static nodes  id=7cf316eda017f4e3 NodeType=2 ip=3.39.19.249    mainPort=32323 port=[32323]
INFO[11/26,23:43:08 +09] [33] [Dial] Add dial candidate from static nodes  id=cb35ce4866635523 NodeType=2 ip=220.95.227.28  mainPort=32323 port=[32323]
INFO[11/26,23:43:08 +09] [33] [Dial] Add dial candidate from static nodes  id=d4ffbb05de66b70d NodeType=2 ip=3.112.180.185  mainPort=32323 port=[32323]
INFO[11/26,23:43:08 +09] [33] [Dial] Add dial candidate from static nodes  id=9610341f6b19c1e1 NodeType=2 ip=35.72.243.255  mainPort=32323 port=[32323]
INFO[11/26,23:43:08 +09] [33] [Dial] Add dial candidate from static nodes  id=894d36bec91ec574 NodeType=2 ip=54.248.156.169 mainPort=32323 port=[32323]
INFO[11/26,23:43:08 +09] [33] [Dial] Add dial candidate from static nodes  id=54e38cdba0b0689e NodeType=2 ip=18.178.108.35  mainPort=32323 port=[32323]
INFO[11/26,23:43:08 +09] [33] [Dial] Add dial candidate from static nodes  id=0b0dbeb296bf4fc5 NodeType=2 ip=34.22.84.254   mainPort=32323 port=[32323]
INFO[11/26,23:43:08 +09] [33] [Dial] Add dial candidate from static nodes  id=a32349656b5d148b NodeType=2 ip=13.114.79.170  mainPort=32323 port=[32323]
INFO[11/26,23:43:08 +09] [33] [Dial] Add dial candidate from static nodes  id=b42e1c9f6a0944c6 NodeType=2 ip=34.64.132.124  mainPort=32323 port=[32323]
INFO[11/26,23:43:08 +09] [33] [Dial] Add dial candidate from static nodes  id=9f228af429ff54d7 NodeType=2 ip=35.240.142.85  mainPort=32323 port=[32323]
INFO[11/26,23:43:38 +09] [33] [Dial] Add dial candidate from static nodes  id=eabe6c17d9193946 NodeType=2 ip=3.37.155.23    mainPort=32323 port=[32323]
INFO[11/26,23:43:53 +09] [33] [Dial] Add dial candidate from static nodes  id=894d36bec91ec574 NodeType=2 ip=54.248.156.169 mainPort=32323 port=[32323]
INFO[11/26,23:43:53 +09] [33] [Dial] Add dial candidate from static nodes  id=9610341f6b19c1e1 NodeType=2 ip=35.72.243.255  mainPort=32323 port=[32323]
INFO[11/26,23:43:53 +09] [33] [Dial] Add dial candidate from static nodes  id=a32349656b5d148b NodeType=2 ip=13.114.79.170  mainPort=32323 port=[32323]
INFO[11/26,23:43:53 +09] [33] [Dial] Add dial candidate from static nodes  id=b42e1c9f6a0944c6 NodeType=2 ip=34.64.132.124  mainPort=32323 port=[32323]
INFO[11/26,23:43:53 +09] [33] [Dial] Add dial candidate from static nodes  id=9f228af429ff54d7 NodeType=2 ip=35.240.142.85  mainPort=32323 port=[32323]
INFO[11/26,23:43:53 +09] [33] [Dial] Add dial candidate from static nodes  id=54e38cdba0b0689e NodeType=2 ip=18.178.108.35  mainPort=32323 port=[32323]
INFO[11/26,23:43:53 +09] [33] [Dial] Add dial candidate from static nodes  id=0b0dbeb296bf4fc5 NodeType=2 ip=34.22.84.254   mainPort=32323 port=[32323]
INFO[11/26,23:43:53 +09] [33] [Dial] Add dial candidate from static nodes  id=d5d1afe3c1b50ca4 NodeType=2 ip=34.64.81.2     mainPort=32323 port=[32323]
INFO[11/26,23:43:53 +09] [33] [Dial] Add dial candidate from static nodes  id=7cf316eda017f4e3 NodeType=2 ip=3.39.19.249    mainPort=32323 port=[32323]
INFO[11/26,23:43:53 +09] [33] [Dial] Add dial candidate from static nodes  id=cb35ce4866635523 NodeType=2 ip=220.95.227.28  mainPort=32323 port=[32323]
INFO[11/26,23:43:53 +09] [33] [Dial] Add dial candidate from static nodes  id=cfaecb1667729b4a NodeType=2 ip=220.95.227.29  mainPort=32323 port=[32323]
INFO[11/26,23:43:53 +09] [33] [Dial] Add dial candidate from static nodes  id=0411f6cac605c8b9 NodeType=2 ip=52.198.133.203 mainPort=32323 port=[32323]
INFO[11/26,23:43:53 +09] [33] [Dial] Add dial candidate from static nodes  id=d4ffbb05de66b70d NodeType=2 ip=3.112.180.185  mainPort=32323 port=[32323]
INFO[11/26,23:44:23 +09] [33] [Dial] Add dial candidate from static nodes  id=eabe6c17d9193946 NodeType=2 ip=3.37.155.23    mainPort=32323 port=[32323]
INFO[11/26,23:44:38 +09] [33] [Dial] Add dial candidate from static nodes  id=9f228af429ff54d7 NodeType=2 ip=35.240.142.85  mainPort=32323 port=[32323]
INFO[11/26,23:44:38 +09] [33] [Dial] Add dial candidate from static nodes  id=54e38cdba0b0689e NodeType=2 ip=18.178.108.35  mainPort=32323 port=[32323]
INFO[11/26,23:44:38 +09] [33] [Dial] Add dial candidate from static nodes  id=0b0dbeb296bf4fc5 NodeType=2 ip=34.22.84.254   mainPort=32323 port=[32323]
INFO[11/26,23:44:38 +09] [33] [Dial] Add dial candidate from static nodes  id=a32349656b5d148b NodeType=2 ip=13.114.79.170  mainPort=32323 port=[32323]
INFO[11/26,23:44:38 +09] [33] [Dial] Add dial candidate from static nodes  id=b42e1c9f6a0944c6 NodeType=2 ip=34.64.132.124  mainPort=32323 port=[32323]
INFO[11/26,23:44:38 +09] [33] [Dial] Add dial candidate from static nodes  id=cb35ce4866635523 NodeType=2 ip=220.95.227.28  mainPort=32323 port=[32323]
INFO[11/26,23:44:38 +09] [33] [Dial] Add dial candidate from static nodes  id=cfaecb1667729b4a NodeType=2 ip=220.95.227.29  mainPort=32323 port=[32323]
INFO[11/26,23:44:38 +09] [33] [Dial] Add dial candidate from static nodes  id=0411f6cac605c8b9 NodeType=2 ip=52.198.133.203 mainPort=32323 port=[32323]
INFO[11/26,23:44:38 +09] [33] [Dial] Add dial candidate from static nodes  id=d5d1afe3c1b50ca4 NodeType=2 ip=34.64.81.2     mainPort=32323 port=[32323]
INFO[11/26,23:44:38 +09] [33] [Dial] Add dial candidate from static nodes  id=7cf316eda017f4e3 NodeType=2 ip=3.39.19.249    mainPort=32323 port=[32323]
INFO[11/26,23:44:38 +09] [33] [Dial] Add dial candidate from static nodes  id=d4ffbb05de66b70d NodeType=2 ip=3.112.180.185  mainPort=32323 port=[32323]
INFO[11/26,23:44:38 +09] [33] [Dial] Add dial candidate from static nodes  id=894d36bec91ec574 NodeType=2 ip=54.248.156.169 mainPort=32323 port=[32323]
INFO[11/26,23:44:38 +09] [33] [Dial] Add dial candidate from static nodes  id=9610341f6b19c1e1 NodeType=2 ip=35.72.243.255  mainPort=32323 port=[32323]
INFO[11/26,23:45:08 +09] [33] [Dial] Add dial candidate from static nodes  id=eabe6c17d9193946 NodeType=2 ip=3.37.155.23    mainPort=32323 port=[32323]
INFO[11/26,23:45:23 +09] [33] [Dial] Add dial candidate from static nodes  id=0411f6cac605c8b9 NodeType=2 ip=52.198.133.203 mainPort=32323 port=[32323]
INFO[11/26,23:45:23 +09] [33] [Dial] Add dial candidate from static nodes  id=d5d1afe3c1b50ca4 NodeType=2 ip=34.64.81.2     mainPort=32323 port=[32323]
INFO[11/26,23:45:23 +09] [33] [Dial] Add dial candidate from static nodes  id=7cf316eda017f4e3 NodeType=2 ip=3.39.19.249    mainPort=32323 port=[32323]
INFO[11/26,23:45:23 +09] [33] [Dial] Add dial candidate from static nodes  id=cb35ce4866635523 NodeType=2 ip=220.95.227.28  mainPort=32323 port=[32323]
INFO[11/26,23:45:23 +09] [33] [Dial] Add dial candidate from static nodes  id=54e38cdba0b0689e NodeType=2 ip=18.178.108.35  mainPort=32323 port=[32323]
INFO[11/26,23:45:23 +09] [33] [Dial] Add dial candidate from static nodes  id=b42e1c9f6a0944c6 NodeType=2 ip=34.64.132.124  mainPort=32323 port=[32323]
INFO[11/26,23:45:23 +09] [33] [Dial] Add dial candidate from static nodes  id=894d36bec91ec574 NodeType=2 ip=54.248.156.169 mainPort=32323 port=[32323]
INFO[11/26,23:45:23 +09] [33] [Dial] Add dial candidate from static nodes  id=9610341f6b19c1e1 NodeType=2 ip=35.72.243.255  mainPort=32323 port=[32323]
INFO[11/26,23:45:23 +09] [33] [Dial] Add dial candidate from static nodes  id=9f228af429ff54d7 NodeType=2 ip=35.240.142.85  mainPort=32323 port=[32323]
1개의 좋아요
19

예전 klaytn의 Binary를 사용하셔서 동기화가 안된 것 같습니다.
새 kaia의 최신 version은 1.0.3 입니다.

20

안녕하세요, 더 확인해본 결과, AMI를 사용하실 경우 kend.conf의 NETWORK_ID 필드가 8217로 설정되는 것을 확인했습니다. NETWORK_ID는 private network를 설정할 때 사용하는 값이기 때문에, 해당 필드가 설정되어 있으면 bootnode가 설정되지 않고 따라서 추가적인 PN이나 EN 또한 연결되지 않을 가능성이 있습니다.

추후 AMI를 사용하신다면, 이 부분 확인하시어 NETWORK 필드를 mainnet으로 설정, NETWORK_ID 필드를 비워두시고 진행해보시기 바랍니다 (참고문서). 감사합니다.

Note: AMI 신규 이미지 지원이 중단되었습니다. 따라서 다음 하드포크 버전부터는 AMI를 사용하신다면 싱크가 되더라도 HF 블록 이후에는 ken를 수동으로 업데이트 해주어야 합니다.
